Motorola Droid RAZR goes under the Axe
- Category: Motorola
- Saturday, 12 November 2011 11:20
-
- by Amol Mathur
The teardown experts at iFixit are ready with the cutting down of the razor sharp, Motorola Droid Razr which is touted to be the thinnest mobile device.
Below are the pictures of what lies inside the Razr. We suggest you not to do this with your mobile device.
Below are the pictures of what lies inside the Razr. We suggest you not to do this with your mobile device.
It all starts here
Here goes the back cover made of Kevlar
The battery is disconnected. Instead of the traditional battery connector socket or soldered wires found in other phones, the Droid RAZR utilizes contact points for its battery connector.
Battery is removed which measures 3.79" long, 2.25" wide, and .110" thick with a capacity of 1750 mAh.
Unscrewing all the rest of the left out parts. From the bottom to top, you can see the glass, display, motherboard, motherboard chips, and then quarter.

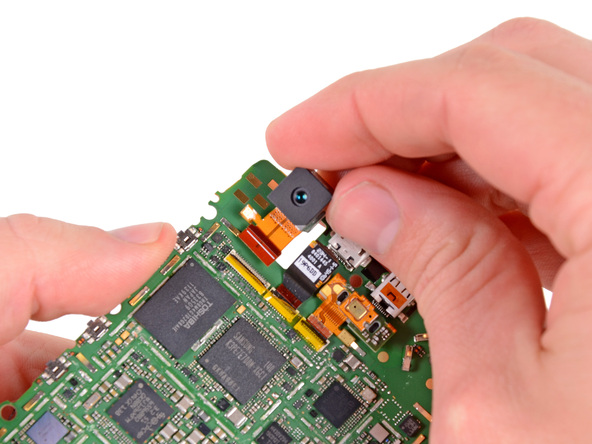

Taking out the camera lens.
The 8MP Camera capable of taking videos at 1080p

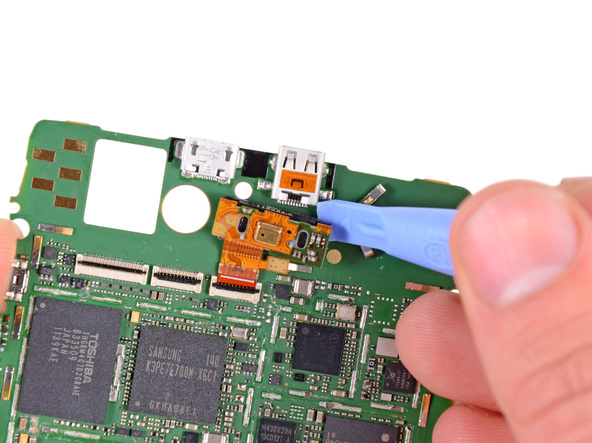

The earpiece
Yeah, this is where you have the 16GB memory, 4GB RAM, Dual-Mode Baseband, Power Management IC, Quad-Band Power Amplifier, LTE Baseband Processor and the Bluetooth, Wi-Fi and GPS chips.
All parts.Source
